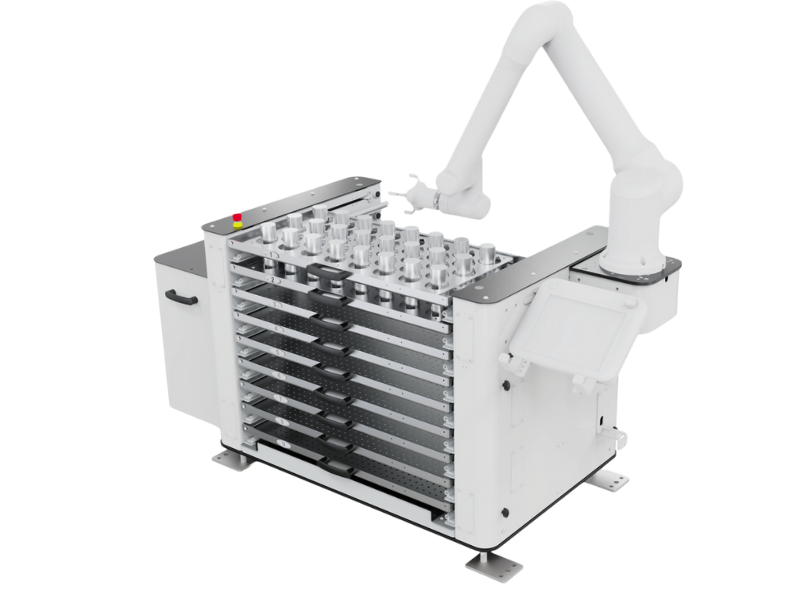

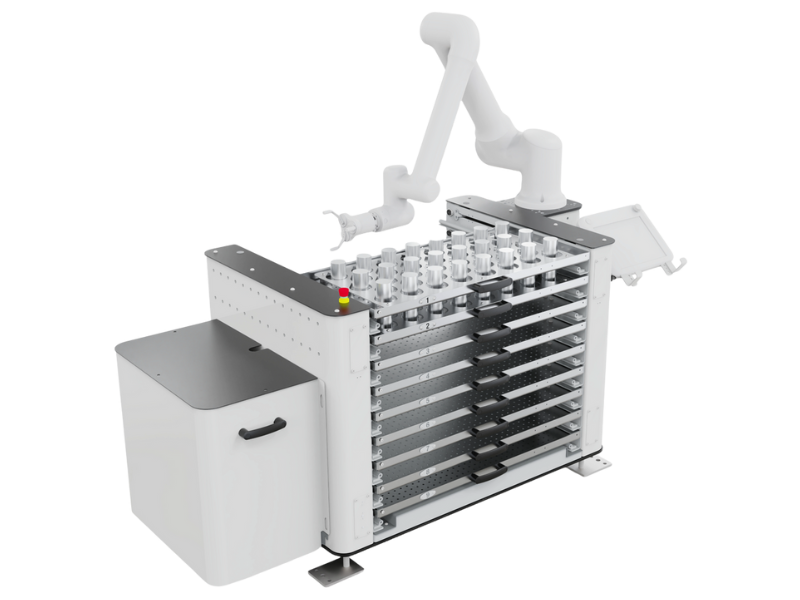

Profeeder S: Machine Tending Solution

The ProFeeder S is a robust and cost-effective robot feeder designed for CNC machine automation, delivering efficient and reliable production performance. Its compact and durable design includes magnetic-lock trays with up to 100 kg capacity per tray, flexible cobot mounting on either the left or right side, integrated cable management, and a controller compartment that can be mounted externally on both sides of the robot cell. The system is forklift-movable, supports up to 5 trays in a compact footprint, and is engineered to optimize automated CNC machine loading in modern production environments.
Variations:
•    PFS-1000-03 – 3 trays, 100 kg per tray, max part height 150 mm, total weight 320 kg
•    PFS-1000-05 – 5 trays, 100 kg per tray, max part height 70 mm, total weight 360 kg
•    PFS-1000-09 – 9 trays, 100 kg per tray, max part height 70 mm, total weight 410 kg
